Series 220 – Low Profile Dual Sealed Foot Switch
$109.22 – $175.61
Very Low Profile Control with a Polished Aluminum Housing
Standard snap switch rating: 15 AMP, 1/2 HP, 125/250 VAC
Available on special order: 20 AMP, 1 HP, 125/250 VAC
UL LISTED NEMA RATED: 1, 2, 4, 4X, 5, 6, 6P, 12 & 13 IEC Ingress Protection: IP54, IP55, IP56, IP57, IP58, IP65, IP66, IP67 & IP68
The patented Series 220 foot switch was designed to offer environmentally sealed protection without the bulk of most sealed foot switches in the market today. Its unique pedal design provides a wide target area of operation, and features an integrated barrier deters both pedals from operating at the same time.
SKU: N/A
Categories: All, Foot Control Categories, Sealed
Description
Features
- Polished aluminum housing with plated steel pedals provides high durability and corrosion protection.
- ½” NPTF connector hole standard for cable strain relief fittings. Other connector holes available.
- No exterior springs! Torsion springs located inside foot switch protecting them from contamination.
- Two mounting holes.
- Capable of handling up to 12/3 cable or .50” O.D. cable
- Quick connect terminals.
- Wide target area for foot operation.
- Long life snap switch.
- #8 grounding screw is provided.
- Skid-resistant elastomeric base pad.
- UL listed to U.S. and Canadian safety standards.
- NEMA and IEC Ingress Protection (IP) rated.
- Two pedal model has an integral barrier to deter both pedals from operating at the same time.
- Low-profile design provides sealed protection without taking up a lot of space.
- Buna-N O-Ring and Buna-N gasket seals for environmental protection.
- Numerous cord strain reliefs available for your special requirements.
- Optional powder coating available for special color requirements.
Specifications
Item # | List Price | Action | Description | Cord Set | Rating | Dimensions | Weight |
---|---|---|---|---|---|---|---|
220-1200-00 | 109.22 | Momentary | Sealed Dual Switch without cord, without strain relief | None | 20 AMP, 1 HP, 125/250 VAC | 7-1/4"W, 4-3/4"L, 1-1/2"H | 3 lbs. |
220-1640-00 | $116.13 | Momentary | Sealed Dual Switch with cord set and strain relief | 8' 18/4 SJT with stripped leads | 7 AMP, 1/4 HP, 125/250 VAC | 7-1/4"W, 4-3/4"L, 1-1/2"H | 5 lbs. |
220-1530-00 | $136.60 | Momentary | Sealed Dual Switch with cord set and strain relief | 8' 16/4 SJO with stripped leads | 10 AMP, 1/2 HP, 125/250 VAC | 7-1/4"W, 4-3/4"L, 1-1/2"H | 5 lbs. |
220-1020-00 | $134.43 | Momentary | Sealed Dual Switch with cord set and strain relief | 8' 14/4 SJO with stripped leads | 15 AMP, 3/4 HP, 125/250 VAC | 7-1/4"W, 4-3/4"L, 1-1/2"H | 5 lbs. |
220-1530-64 | $175.61 | Momentary | Sealed Dual Switch with cord set and strain relief in yellow guard | 10' 16/4 SJO with stripped leads | 10 AMP, 1/2 HP, 125/250 VAC | 11"W, 5-3/4"L, 4-3/4"H | 9-3/4 lbs. |
Additional information
Weight | 80 oz |
---|---|
Item # | 220-1200-00, 220-1640-00, 220-1530-00, 220-1020-00, 220-1530-64 |
Related products
-
Series 360 – Potentiometer Foot Switch
$125.51 – $147.57 Select options -

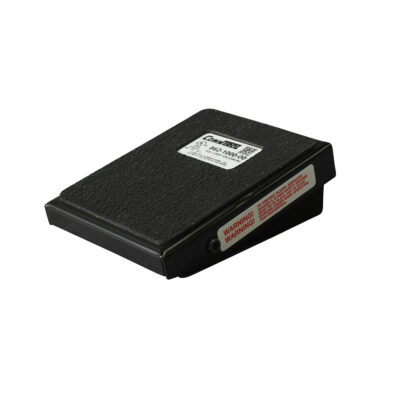

Series 862 – Ergonomic Light Duty Foot Switch
