Features
- Solid steel construction, with full cover and base pads
- The 892 features a cable clamp that is located inside the foot switch
- Redundant corrosion-resistant spring system
- High-strength socket head hinge screws
- All threaded openings are extruded to provide extra thread engagement
- Two mounting holes
- Capable of handling up to 14/3 cord
- Quick-connect terminals required
- Long life snap switch
- #8 grounding screw is provided
- High-quality, black E-coat
- A fiberglass sleeve is supplied to comply with UL requirements for strain-relief of thermoplastic jacketed cord
- #892 Series is UL listed to U.S. and Canadian safety standards
- Ingress protection rating: NEMA Type 1 enclosure
- Optional guards, oversize guards and stainless-steel guards available.
Series 892 - Traditional Light Duty, Product Variations

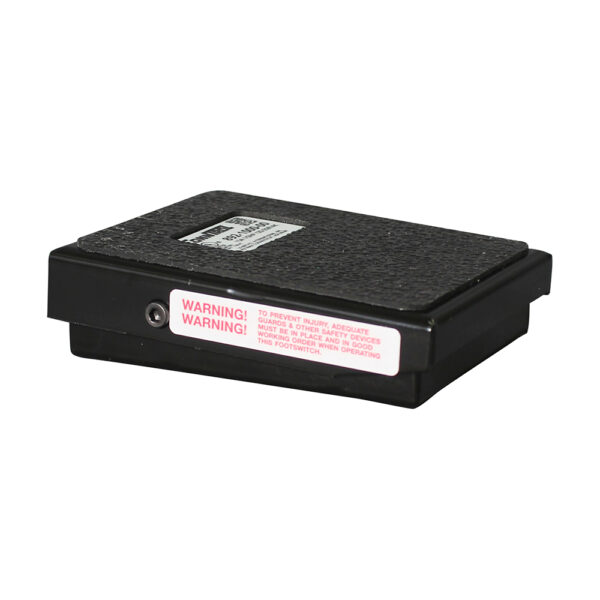

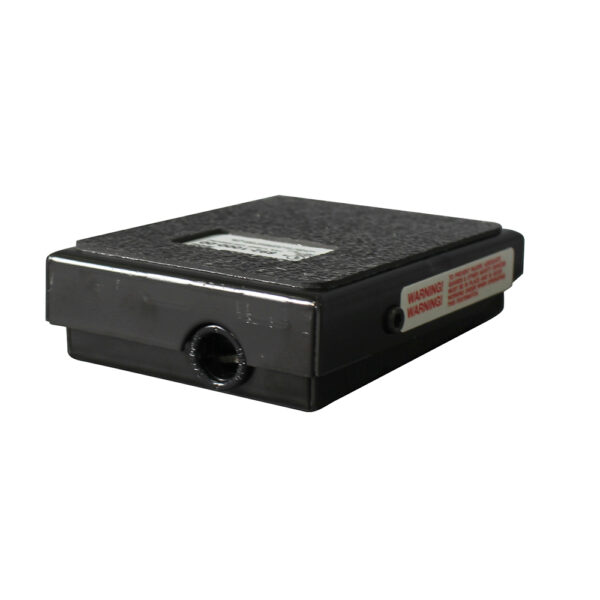

892-1000-00
List Price: $19.44
Action: Momentary
Description: Single Switch
Cord Set: None
Rating: 15 AMP, 1/2 HP, 125/250 VAC
Dimensions: 2-3/4”W, 3-5/8”L, 1-1/2”H
Weight: 9 oz.
892-1330-02
List Price: $28.40
Action: Momentary
Description: Single Switch with cord set and series plug
Cord Set: 12' 16/3 SJT with molded series plug
Rating: 13 AMP, 1/2 HP, 125 VAC
Dimensions: 2-3/4”W, 3-5/8”L, 1-1/2”H
Weight: 1 lb.
892-1330-03
List Price: $35.63
Action: Momentary
Description: Single Switch with cord set and series plug
Cord Set: 8' 16/3 SJT with molded series plug
Rating: 13 AMP, 1/2 HP, 125 VAC
Dimensions: 2-3/4”W, 3-5/8”L, 1-1/2”H
Weight: 1 lb.
892-1350-00
List Price: $30.79
Action: Momentary
Description: Single Switch with cord set
Cord Set: 6' 16/3 SJT with leads stripped
Rating: 13 AMP, 1/2 HP, 125/250 VAC
Dimensions: 2-3/4”W, 3-5/8”L, 1-1/2”H
Weight: 1 lb.
892-1440-00
List Price: $28.43
Action: Momentary
Description: Single Switch with cord set and series plug
Cord Set: 6' 18/3 SJT with molded series plug
Rating: 10 AMP, 1/3 HP, 125 VAC
Dimensions: 2-3/4”W, 3-5/8”L, 1-1/2”H
Weight: 1 lb.
892-1460-00
List Price: $27.43
Action: Momentary
Description: Single Switch with cord set
Cord Set: 6' 18/3 SJT with leads stripped
Rating: 10 AMP, 1/3 HP, 125/250 VAC
Dimensions: 2-3/4”W, 3-5/8”L, 1-1/2”H
Weight: 1 lb.
892-1570-00
List Price: $31.01
Action: Momentary
Description: Single Switch with cord set and series plug
Cord Set: 8' 14/3 SJT with series plug with 15 Amp interior
Rating: 15 AMP, 1/2 HP, 125 VAC
Dimensions: 2-3/4”W, 3-5/8”L, 1-1/2”H
Weight: 1 lb.
892-1570-02
List Price: $41.59
Action: Momentary
Description: Single Switch with cord set and series plug
Cord Set: 8' 14/3 SJT with series plug with 25 Amp interior
Rating: 15 AMP, 3/4 HP, 125 VAC
Dimensions: 2-3/4”W, 3-5/8”L, 1-1/2”H
Weight: 1 lb.
892-1990-32
List Price: $31.65
Action: Momentary
Description: Single Switch with cord set and series plug
Cord Set: 6' Cord with 2.5 mm phone plug
Rating: 0.1 AMP, 125 VAC
Dimensions: 2-3/4”W, 3-5/8”L, 1-1/2”H
Weight: 1 lb.
892-1990-33
List Price: $34.57
Action: Momentary
Description: Single Switch with cord set and series plug
Cord Set: 6' Cord with 3.5 mm phone plug
Rating: 0.1 AMP, 125 VAC
Dimensions: 2-3/4”W, 3-5/8”L, 1-1/2”H
Weight: 1 lb.
892-1990-34
List Price: $34.23
Action: Momentary
Description: Single Switch with cord set and series plu
Cord Set: 6' Cord with 1/4" Mono phone plug
Rating: 0.1 AMP, 125 VAC
Dimensions: 2-3/4”W, 3-5/8”L, 1-1/2”H
Weight: 1 lb.
892-1990-38
List Price: $33.31
Action: Momentary
Description: Single Switch with cord set and series plug
Cord Set: 6' Cord with 1/4" Stereo phone plug
Rating: 0.1 AMP, 125 VAC
Dimensions: 2-3/4”W, 3-5/8”L, 1-1/2”H
Weight: 1 lb.
